overview
Basic Info.
| Model NO. | XSR-470 XST-26-470 | Quality | High Quality; OEM Original |
| Size | OEM Standard Size | Part Name | Ford Main Reducer Assembly |
| MOQ | 1 PCS | Automatic | Automatic |
| Sample | Avaiblable | Main Market | Worldwide |
| Axle | Fuwa Axle Parts | Condition | New |
| Certification | ISO9001 | Transport Package | Standard Package |
| Specification | Standard Component | Origin | China |
| Number of driving gear teeth | 35 teeth | Number of angular teeth | 46 teeth |
| Net weight | 37 KG |
1. Load
Rated load: 26000Kg
Gross combination weight rating (Road vehicle): 100000Kg
2. Wheel-base (other options are designed on request)
1860mm（STD）、1830mm（optional）
3. Center distance of leaf spring
950～1040mm
4. Hypoid gear
Diameter of driven gear: Φ470mm
Tooth width: 81mm
Speed Ratio (other options are designed on request): 3.08, 3.17, 3.38, 3.70, 4.11, 4.22, 4.44, 4.62, 4.75, 5.29, 6.17, 6.83
5. Axle housing
Square section: 160x160mm
Wall thickness: 16mm
Friction welding: Φ150mm
6. Half Shaft
Shaft diameter: Φ57.5mm
Spline: Φ59.6mm-46 teeth
7. Brake (other options are designed on request)
410x220mm; 410x200mm; 410x180mm
8. Wheel installation (other options are designed on request)
Φ335mm-10 Bolt M22x1.5
Product Description
Main Reducer Assembly Differential Assembly For Ford Truck Spare Parts XSR-470 XST-26-470
Operating principle of the final drive assembly:
The working principle of the main reducer is to decelerate the power output from the transmission again to increase the torque, and then transmit the power to the differential.
Type of final drive:
(1) Single-stage main reducer: the main reducer of most cars is single-stage main reducer, and the reduction type is ordinary helical gear type or bevel gear type:
As shown in the figure, the bevel gear type main reducer is widely used in the rear sedan of rear-drive vehicles. The output power of the transmission is transmitted to the driving bevel gear through the transmission shaft, and then to the differential after the reduction of the driven bevel gear. The ordinary helical gear type main reducer is applied to the transmission of front drive vehicles.
Note: For the main reducer in the transmission of the front drive vehicle, if the engine is transversely placed in the engine room, the main reducer is of the ordinary helical gear type; If the engine is set longitudinally in the engine room, the final drive is of bevel gear type.
(2) Double-stage main reducer: on heavy trucks, double-stage main reducer is often used. The first stage is bevel gear reduction, and the second stage is ordinary helical gear reduction.

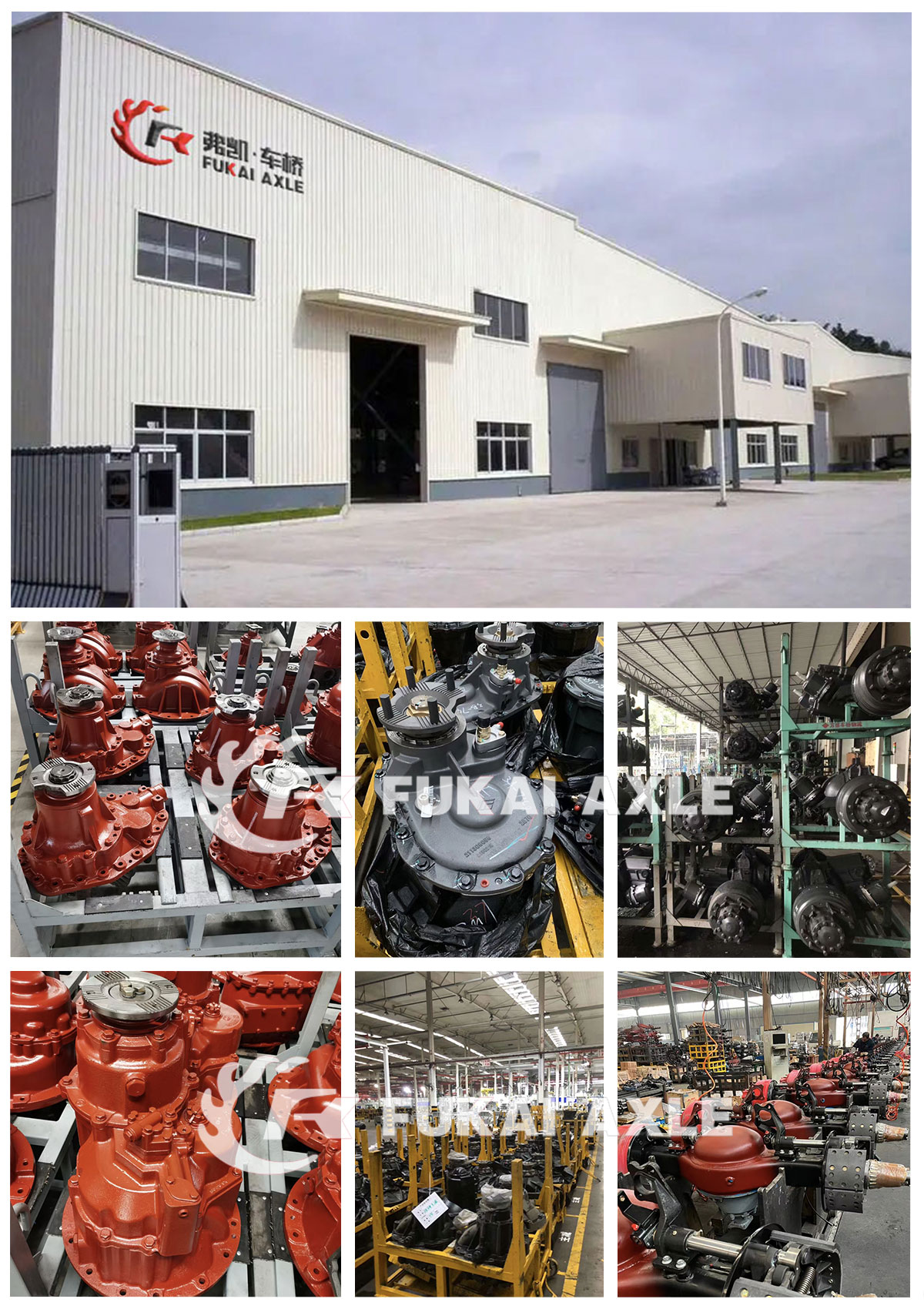

Factory Show
Packaging & Shipping

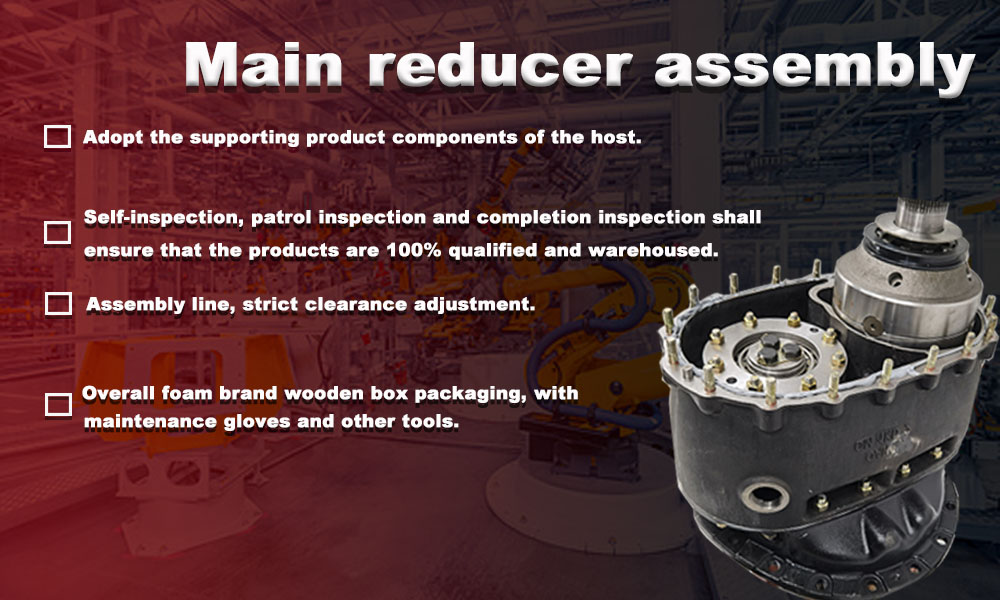

Company advantages
Main Certification
(1) Adopt the supporting product components of the host.
(2) Assembly line, strict clearance adjustment.
(3) Self-inspection, patrol inspection and completion inspection shall ensure that the products are 100% qualified and warehoused.
(4) Overall foam brand wooden box packaging, with maintenance gloves and other tools.
FAQ
Q1. What is your terms of packing?
We have branded packaging and neutral packaging, and we can also do what you want with authorization. This is flexible.
Q2. What is your sample policy?
We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q3. What are your brand agency conditions and advantages?
After we sign an agent in one city, we will not sign a second company to protect the agent's brand advantage and price advantage. And we will help the agent develop customers and solve all kinds of difficult and miscellaneous problems about products.
Q4. How to guarantee your after-sales service?
Strict inspection during production, Strictly check the products before shipment to ensure our packaging in good condition. Track and receive feedback from customer regularly. Our products warranty is 365 days.
Each product provides quality assurance service. If there is a problem with the product within the warranty period, the customer can negotiate with us in detail about the related claims, and we will do our best to satisfy the customer.
Q5. How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit ;
We respect every customer as our friend and we sincerely do business and make friends with them, no matter who they are.
Q6. What is your terms of payment?
By TT or LC. We'll show you the photos of the products and packages before you pay the balance.
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
